The VC60B+ adopts the DC Voltage convertor of low consumption and high converter ratio inductance energy storage, to make the 9V Voltage changed to 250V/500V/1000V DC Voltage.

It uses digital bridge to make the insulation resistance measurement with the features of user-friendly, high extent range, backlight display, data hold and auto power off.

The whole instrument is stylish and superior grade in appearance and high stable in performance, it can be operated by both hands through using a shoulder strap. It is most suitable for the needs of insulation resistance check, such as electric, cable, electrical and mechanical equipment, telecommunication equipment and electrical facilities.

General Property:

  1. Display: 64×30mm LCD display, max. “1999”.
  2. Over range indicator: display “1”.
  3. Power: 5# battery LR6 (1.5V) ×6, low battery indication. Auto power off (approx. 15minutes after turning on)
  4. Power consumption: consumption is less than 300mw at unload measurement.
  5. Operation environment: Temperature 00C—400C, relative humidity: 30%RH—85RH.
  6. Dimension:105(L)×164(W)×70(D)mm
  7. Weight:630 g(including batteries)

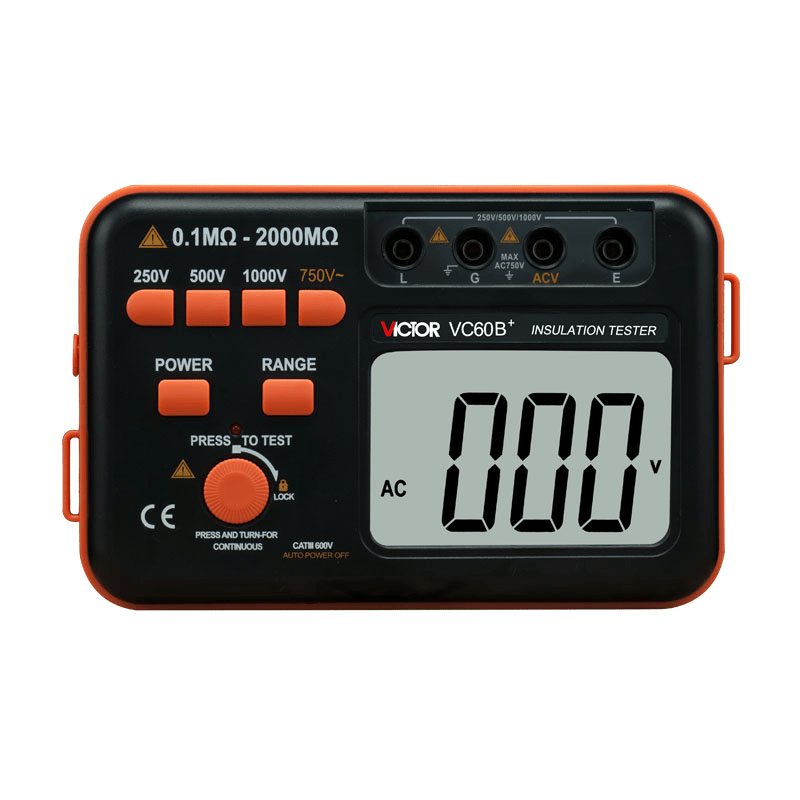

VICTOR VC60B+ Digital Insulation Resistance Tester
